Integrative Long range UHF RFID card reader 0- 6m long distance range with 8dbi Antenna RS232/RS485/Wiegand Reader

7,150.009,223.50

Clear
SKU: N/A Category:

Description

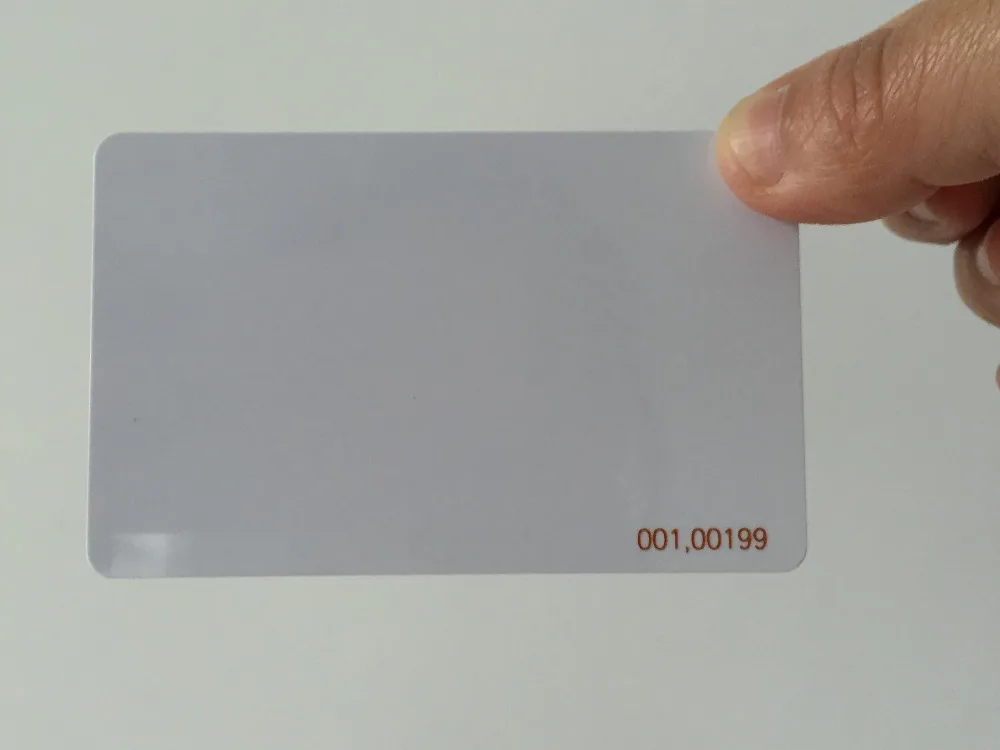

 We have the electonic software, We usually send customer by Email. Kinly leave your message after Place an order when you need . Each one set with 1 pcs card for testing .





​the difference between with warranty and with no warranty is same product , we will test them well before delivering . but if the customer buy product the with no warranty , we haven’t any after service for product ( include shipping damaged , function testing , control board repair and replacement ect.) because this price is lower price without profit .





pls confirm that you use the EU or AE frequency , generally speaking , the reading distance of EU Frequency reader is less than AE frequency . and connect the power supply correctly , if the man-made damaged , we couldn’t duty for that .





for the reading distance , it could read max 6 m distance , sometime it more than 6m when you use American frequency . the reading distance is related with enviroment , if there is Signal interference with different frequencies  , the reading distance will be shorter ,seriously , it will not be reading card .





our software is for our UHF reader and same as our USB UHF writer , actually , the USB intereface is for USB UHF writter .  Our reader is UHF reader , not USB UHF writer , pls dont’ use USB interface for testing in the software .

kinldy inform that .




if you have any issue , pls contact the seller first , the best solution is not disput or negative feedback , we will try our best to help our customer solve problems.

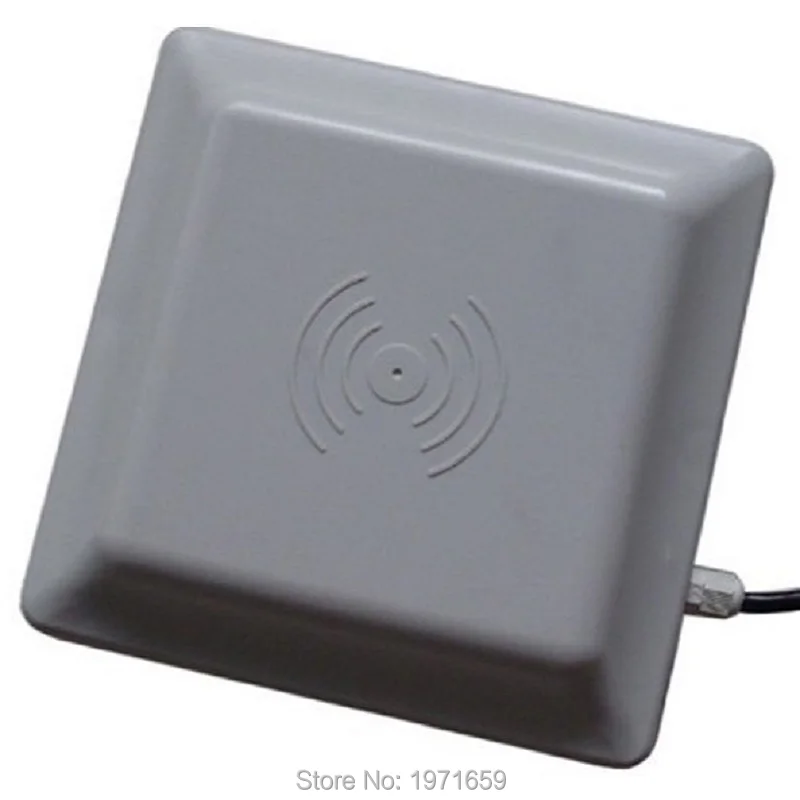

The UHF RFID Middle Range Reader is a high performance UHF integrated reader .Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such aslogistics, access control, and anti-counterfeit and industrial production process control system.

Specification:

Type: UHF passive Middle Range Integrated Reader

Dimension: 235*235*57mm

Net Weight: 900g

Operating Temp:-10 ~ +60°C

Storage Temp:-25 ~ +80°C

Interface: RS232/ UART, RS485, wiegand 26/34

Indicator: Buzzer

Power Supply : +DC9V ( equipped with power adaptor)

RFID Parameters:

Frequency Range: 902-928 mhz( FCC), 865-868 mhz (CE)

Protocols: ISO18000-6B, ISO18000-6C/ EPC GEN2

Work Mode: FHSS Hopping and Fixed Frequency

RF Power: 0-30 dBM, Adjustable set by software

Antenna: Built-in 8dbi Circularly polarized antenna

Read Range:0- 6M , tag and environment dependent

 Read Mode: Active , Answer , Trigger Working Mode, Software Programmable

Vehicle Moving Speed: 80 Km/h

Software: Provide SDK ,DLL and Demonstration Software, Sample code to facilitate further development.

QQ20160323170708.







Image ( RS232/RS485, Wiegand 26/34)
UHF Reader (11) long range reader UHF Reader (5) UHF reader (3)
IMG_6412 IMG_6413 IMG_6414 IMG_6417

The softwar interface : (it’s for verstion :3.2.0.1 )

IMG_4974IMG_4977IMG_4978IMG_4979







We also have the UHF tags and cards, it’s optional ,kindly contact seller when you need.
IMG_0832 IMG_0856 UHF tags
metal lable (5)

application
